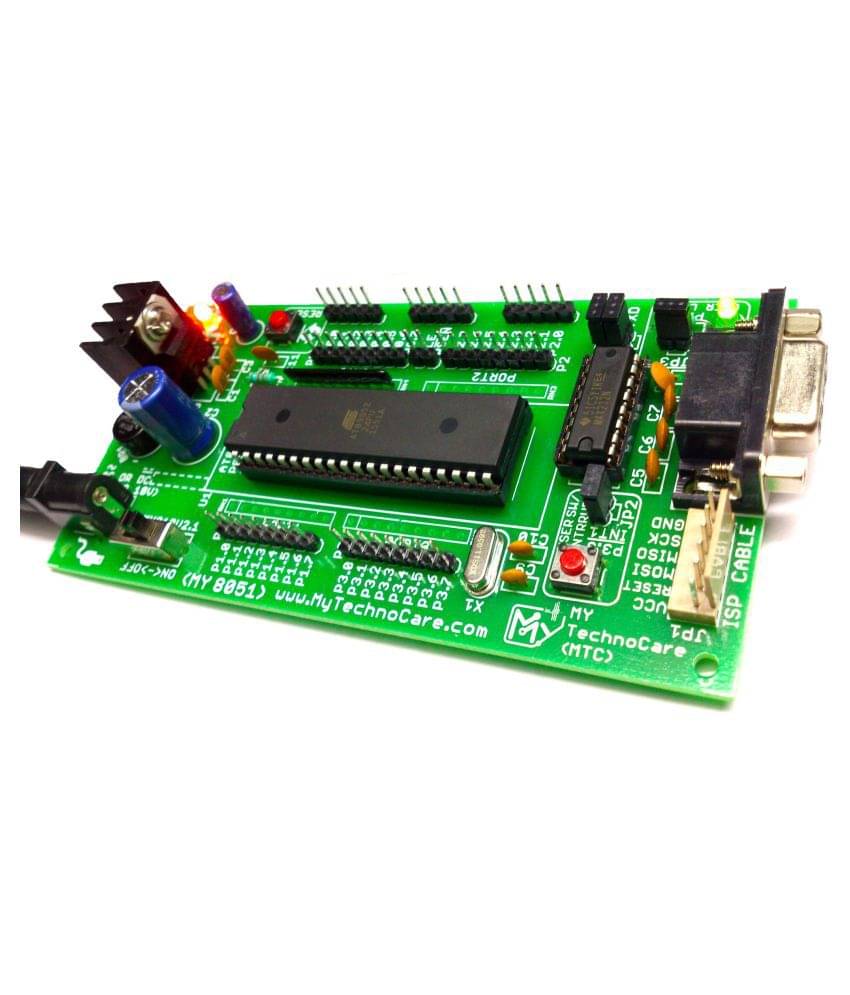

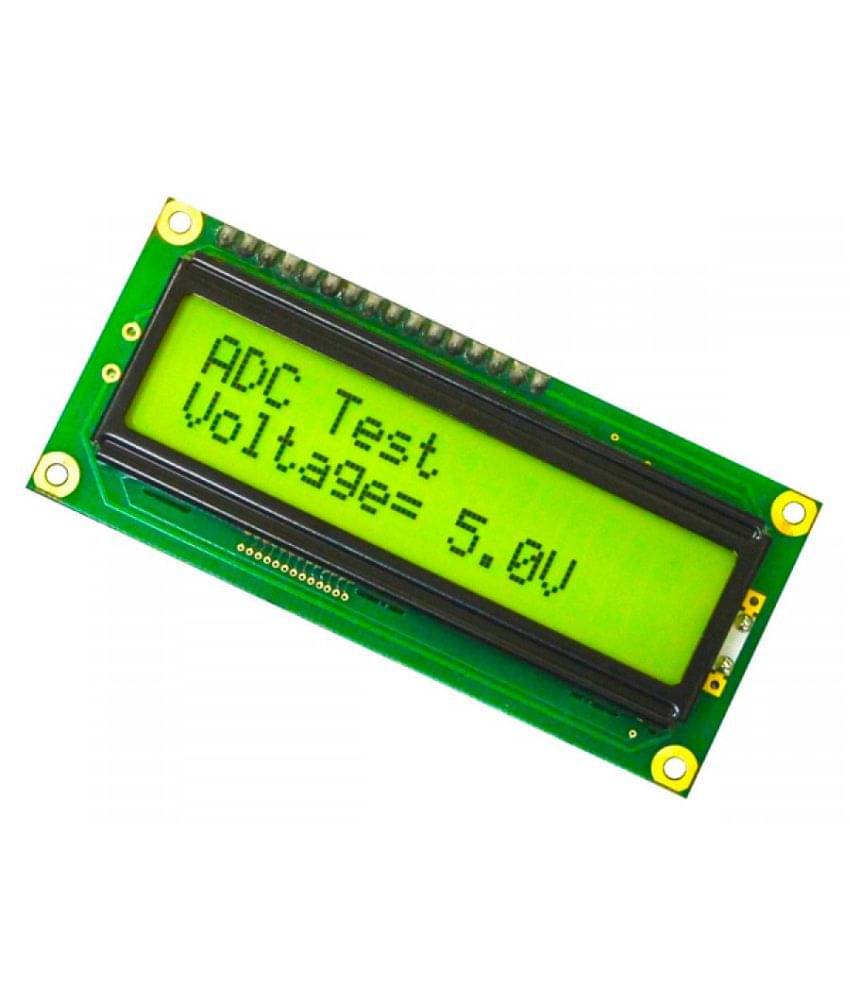

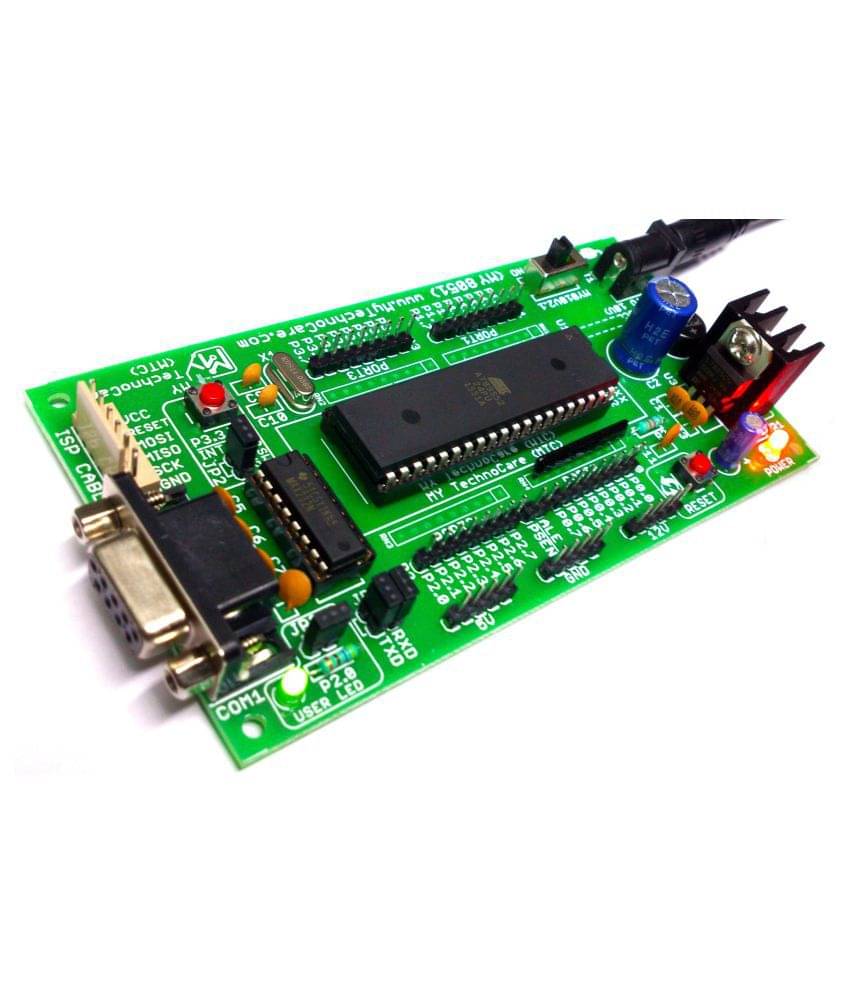

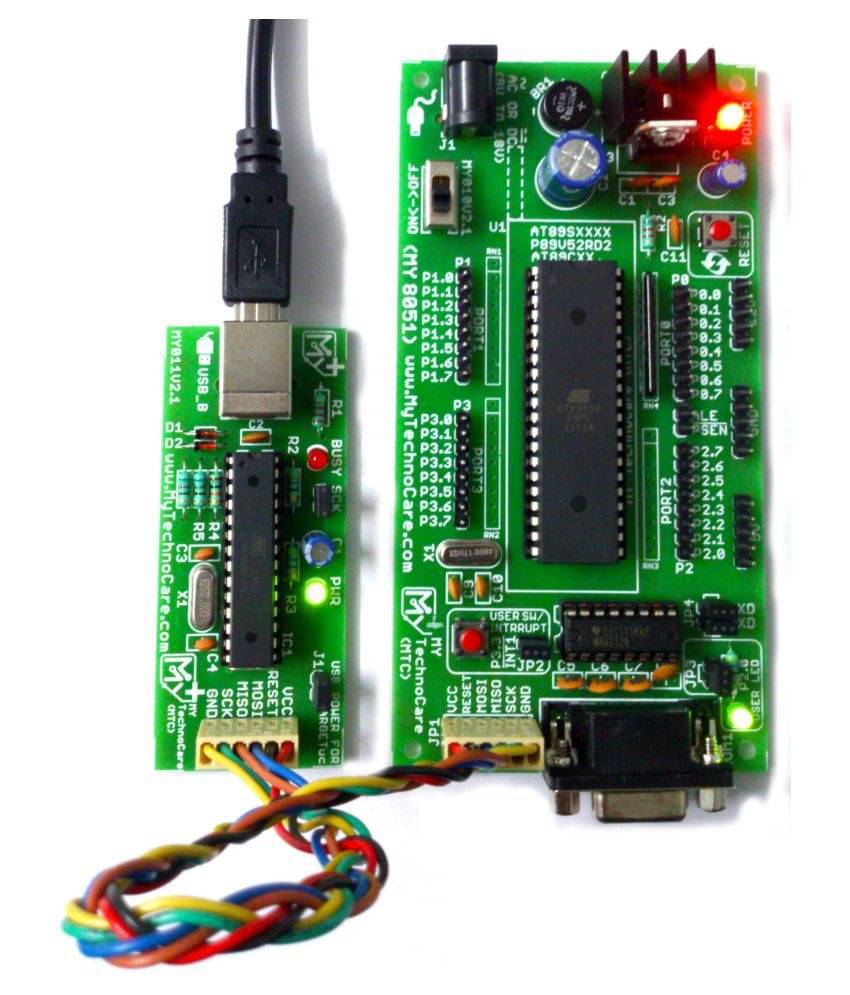

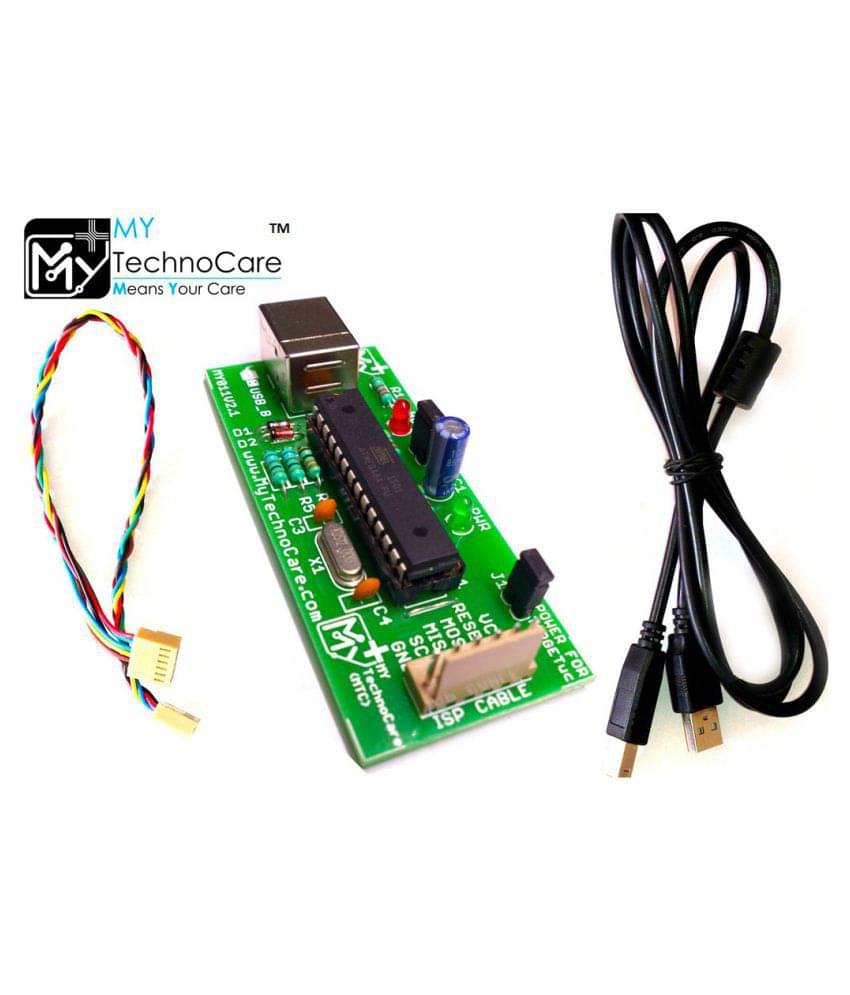

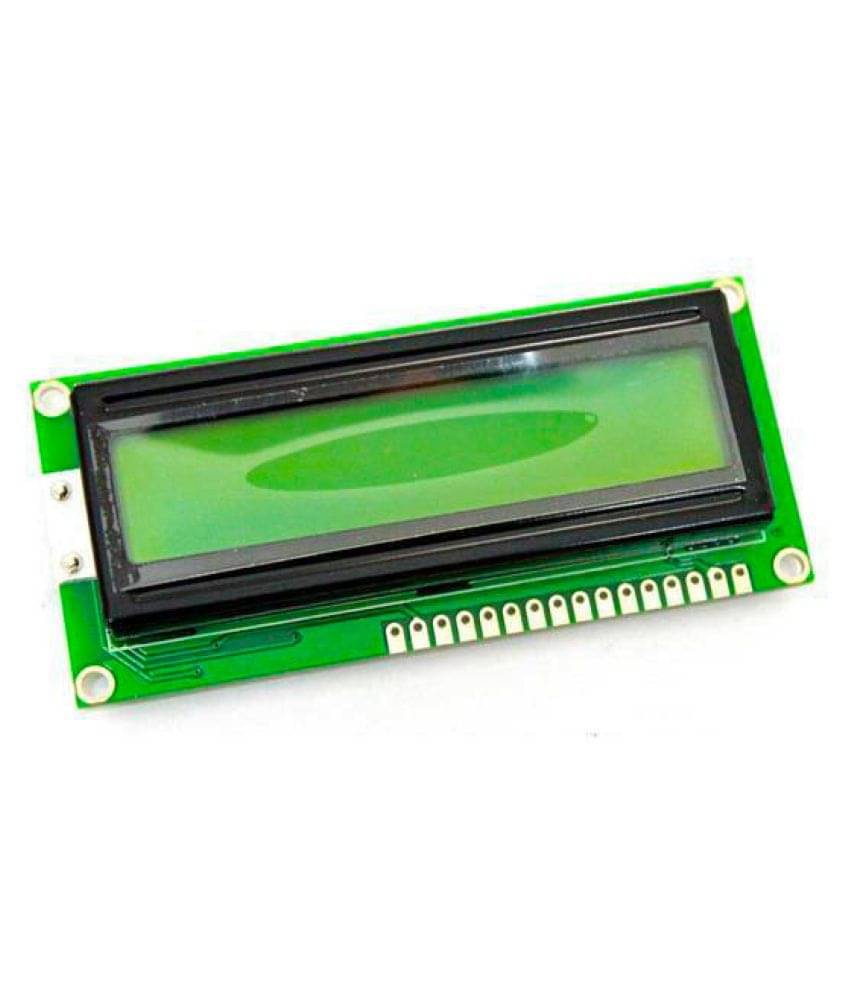

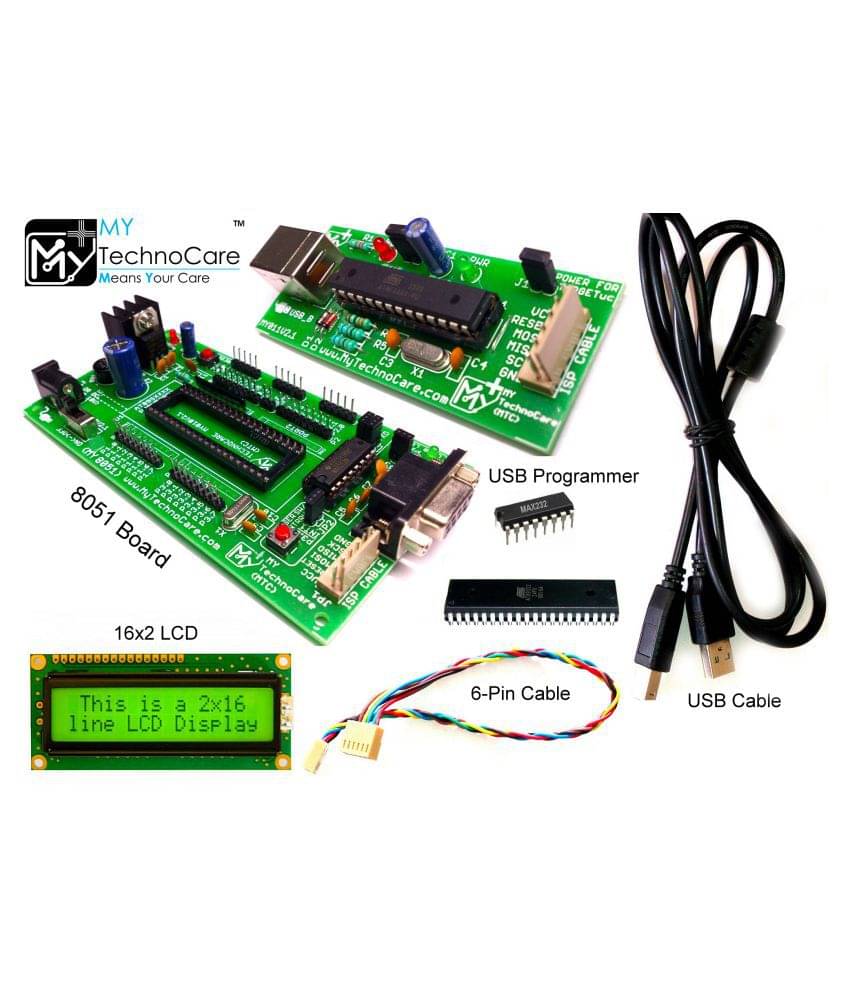

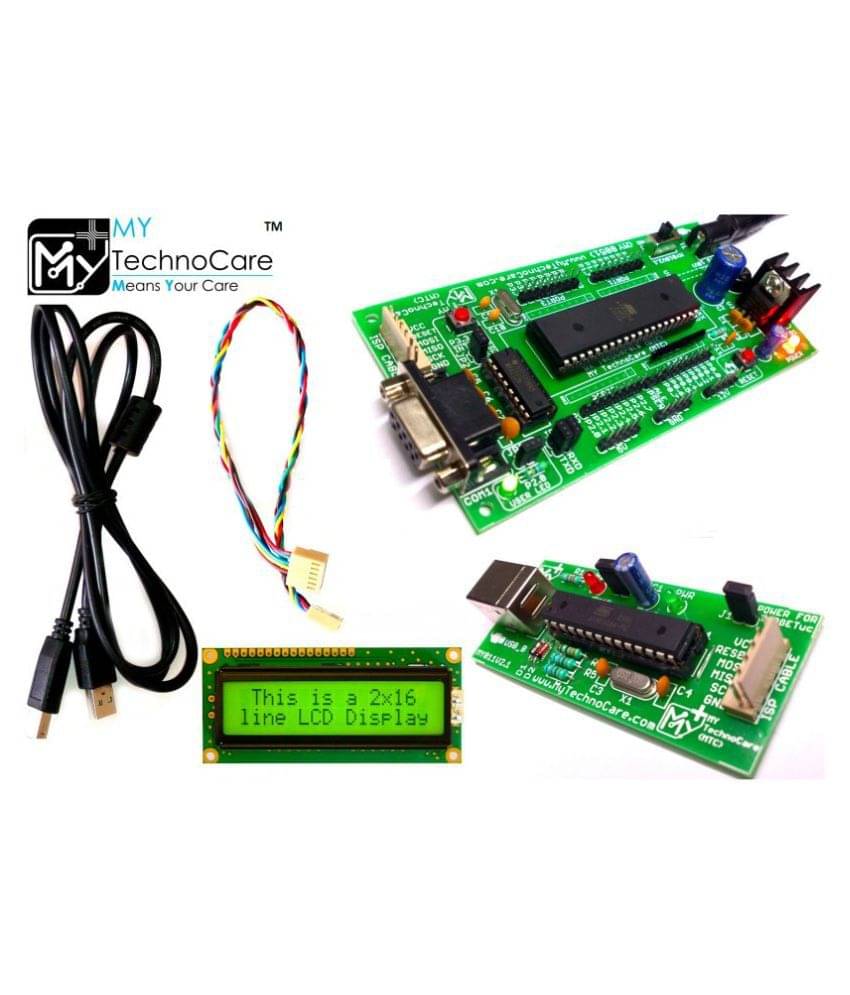

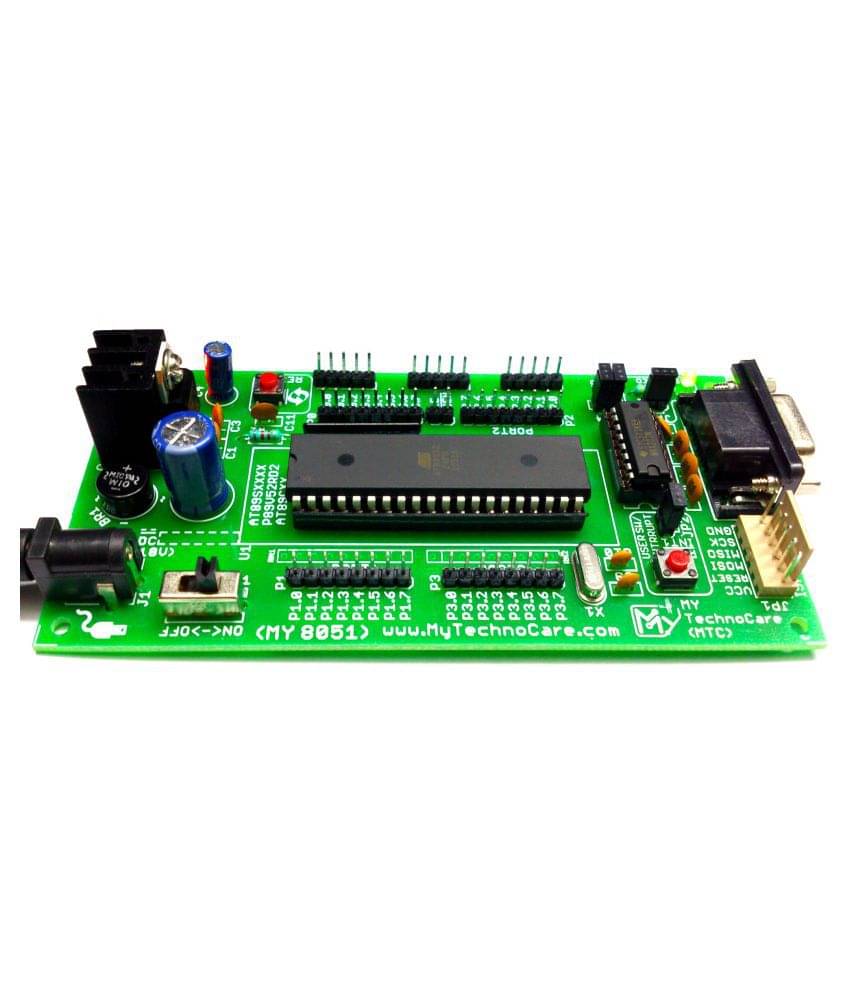

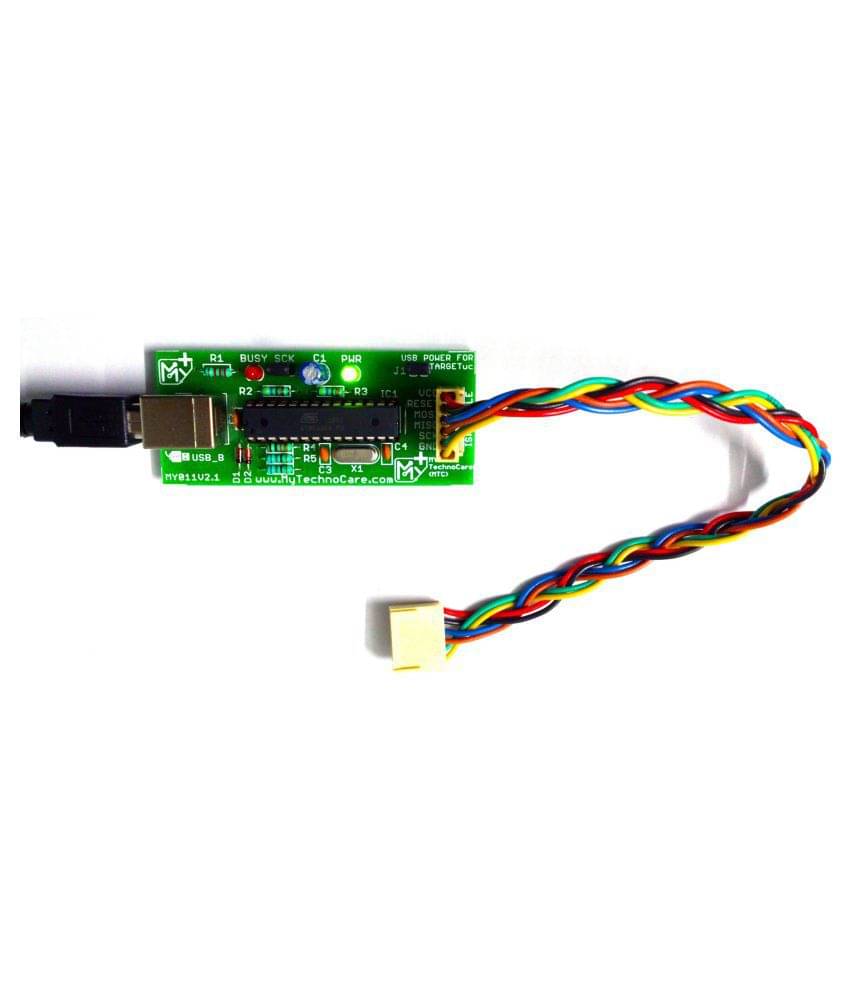

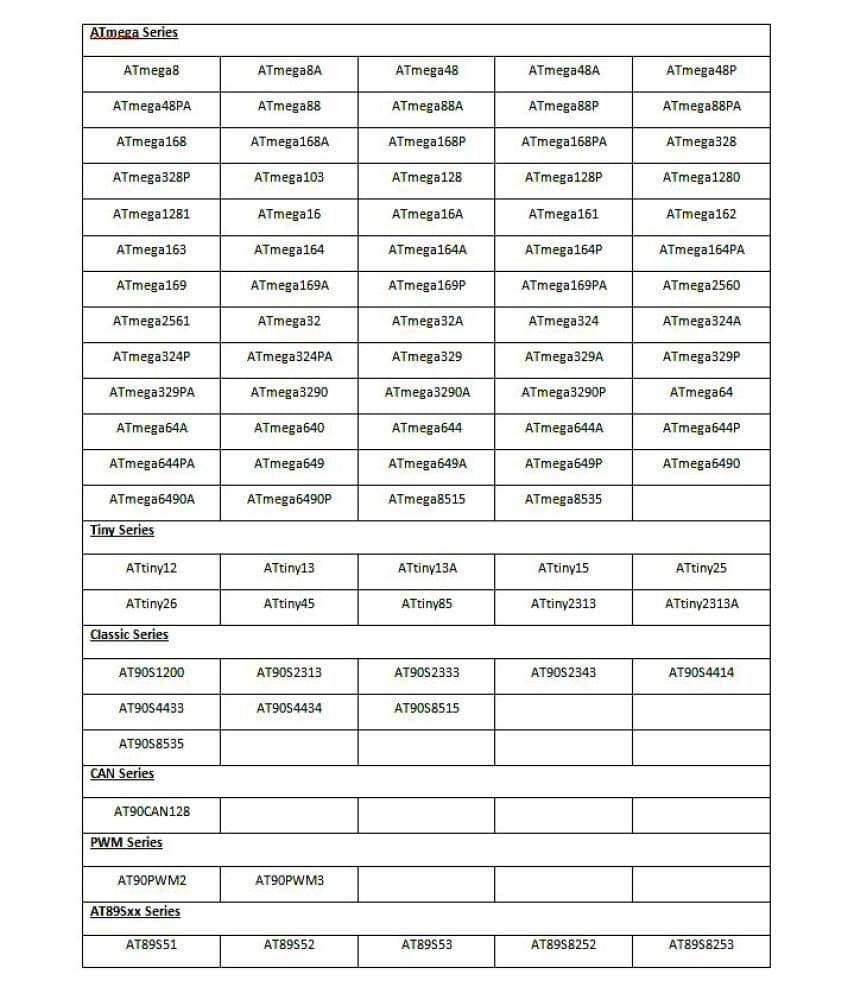

8051 Microcontroller and Embedded Systems Development Board with 16x2 LCD Display, Atmel AT89S52 IC + RS232 IC | USB ISP Programmer for AVR, 8051/8052 Programming | Electronics Engineering Project Kit. 8051 Development Board with LCD 16×2 Display with Yellow Backlight and USB Programmer have On-Board MAX232 & AT89S52 Microcontroller IC. 8051 Development Board with LCD Project Kit Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip. USB Programmer can be used for both 8051-AVR IC (2in1).16×2 LCD Display has Yellow Back-light. ABOUT 8051 PROGRAMMER: For How To Program 8051 AVR Microcontroller |How to install driver |Circuit Diagram-Connection| Driver For All Windows OS 64|32-bit (All in 1 RAR file) Download= https://bit.ly/progallinfo | AVR 8051/8052 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable. Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) ATmega 8/328, 16, 32 etc. with the same Programmer. For Supported IC List: SEE Product Images. It is low cost USB based programmer. No need to take out Target Micro controller from the development Board. Programmer will work with variety of Atmel AVR & 8051 microcontroller. It Allows You to Read/Write the Microcontroller Flash, EEPROM, Fuse Bit & Lock Bit. Support Windows OS ( Xp to 10),Mac OS X & Linux. ATmega8 with USBasp Firmware Pre-loaded. SCK Option to Support Targets with Low Clock Speed (<1.5 MHz).5 KB/sec Maximum Write Speed. Programmer can provide 5V supply for Target Microcontroller, so No Need of Any External Supply. Two Status LEDs | Green LED: Power Supply Indicator| RED LED: It is ON While Programmer is Busy.6 pin Polarized ISP Interface for Easy Connection. Supported Software: Progisp, AVRdude, Khazama AVR Programmer | ABOUT 8051 DEVELOPMENT BOARD: If You are Learning Microcontroller Programming & want to make Project based on 8051 microcontroller then This Board will help you. With this board you can Develop & Prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers.1.5 Amp Bridge Rectifiers allow this board to be Powered with both AC & DC power supply adapters. It RS232 Serial port for flashing like P89V51RD2 (NXP) microcontrollers & also use for interfacing GSM module, GPS Module, RFID Module. There is 5V, 12V, GND Power bus which allow to Power external Peripherals module. FEATURES of 8051 Board: DIP 40 Pin Microcontroller IC Socket For Easy Insert/Removal of Microcontroller IC.RS232 Interface Circuit for Easy Communication with PC & other Serial Devices(GPS modules, GSM Modems, etc.).High quality FR-4(1.6 mm) PCB. On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply .Recommended Input Voltage: 9-12V.Min-Max Input Voltage: 9-18V.On-Board 5 mm Power Plug-in DC Jack. On-Board 5V regulator (LM7805) circuit. On-Board Power ON - OFF switch. On-Board power indication RED LED. On-Board GREEN USER LED connected to P2.0 through jumper JP3.On-Board Input User Switch P3.3 through jumper JP2.On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.On-board Quartz Crystal 11.05892 MHz. Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin. External Pull-Up resistors for Port 0.On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc. Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral. Four 3mm mounting hole for easy mounting. On-board Reset button. Dimensions: 12cm x 6.4cm. ABOUT 16x2 LCD DISPLAY: 16×2 LCD Display Support mostly All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc. First of all 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Back light. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more it has JHD162A Compatible Pin-out Diagram, so Command Interface code is freely available. Finally you will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen. It also Includes LED back-light. Learn How To Interface 8051 Development Board with LCD 16×2 Display using 8051/AVR USB Programmer for Burn/Flash Hex File into Atmel AT89S52 Microcontroller. | FEATURES of 16×2 Display LCD: Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices | LCD display module with Green/Yellow Backlight | SIZE: 16×2 (2 Rows and 16 Characters per Row) | 16x2 LCD Can display 2-lines X 16-characters | It Operate with 5V DC | Wide viewing angle and high contrast | Built-in industry standard HD44780 equivalent LCD controller | LCM type: Characters. | Package Contents : 1 x 8051 Development Board With Onboard MAX232 & AT89S52 IC, 1 x USB ISP Programmer, 1 x 6-pin Polarized Cable, 1 x USB A to B Cable, 1 x LCD 16×2 with Yellow/Green Backlight. | Have any Queries; Please Contact Us mytechnocare.info@gmail.com or MyTechnoCare Website. | Download Programmer Driver & Manual = https://bit.ly/progallinfo and 8051 Kit Manual = https://bit.ly/8051kitdata NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.
