FEATURES

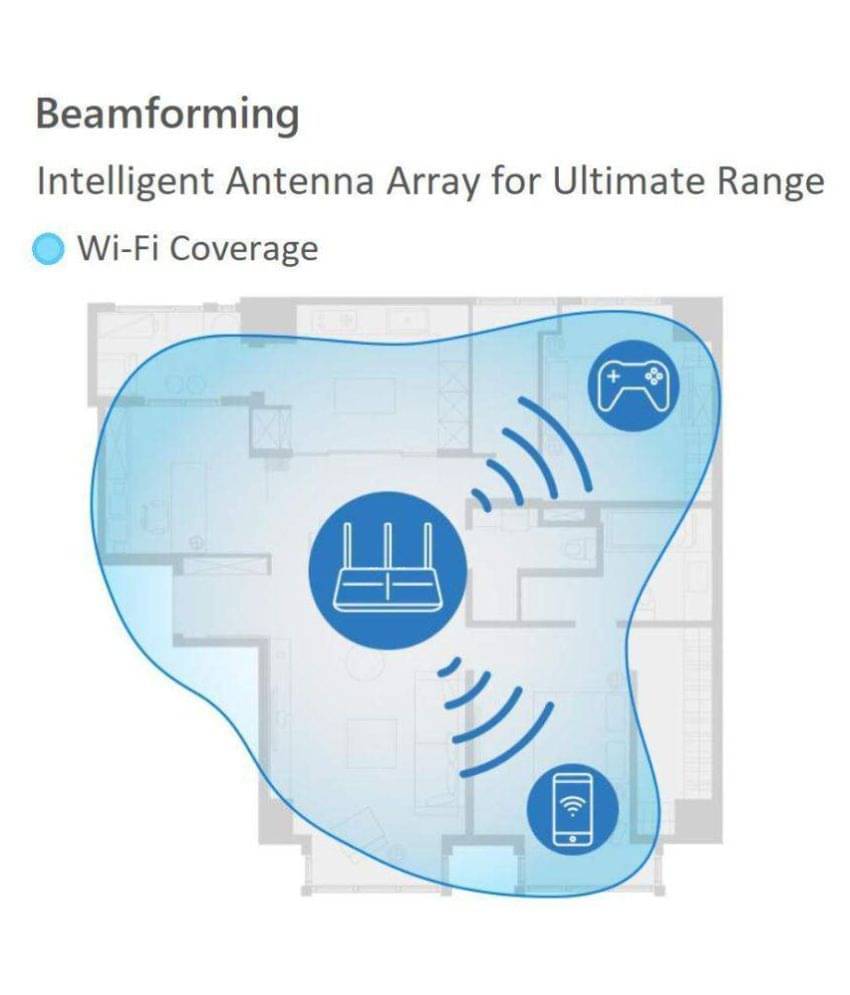

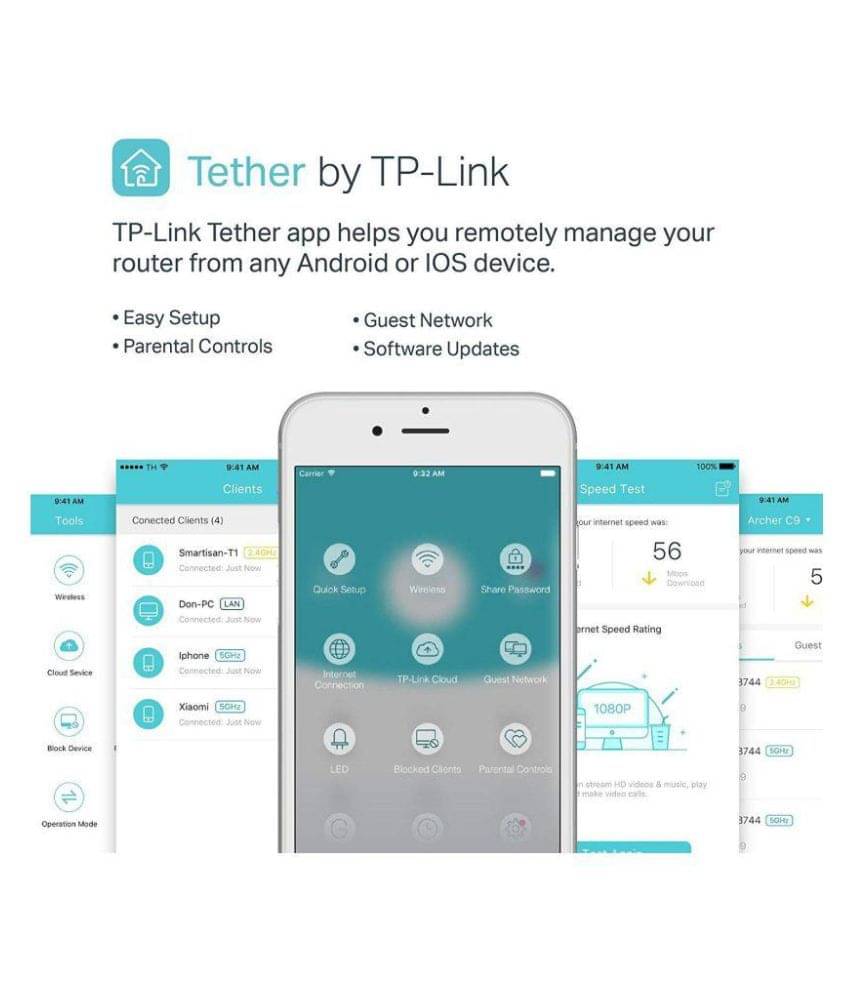

1200Mbps Wi-Fi for Smooth Entertainment 867Mbps 5GHz Band & 300Mbps 2.4GHz Band Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi 3 External Antennas Greatly Expand Wireless Coverage Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above) Lightning-Fast wired connections using four Gigabit Ethernet Ports Easy setup and management with Tether App 1 USB Port supports storage and file sharing
HARDWARE FEATURES

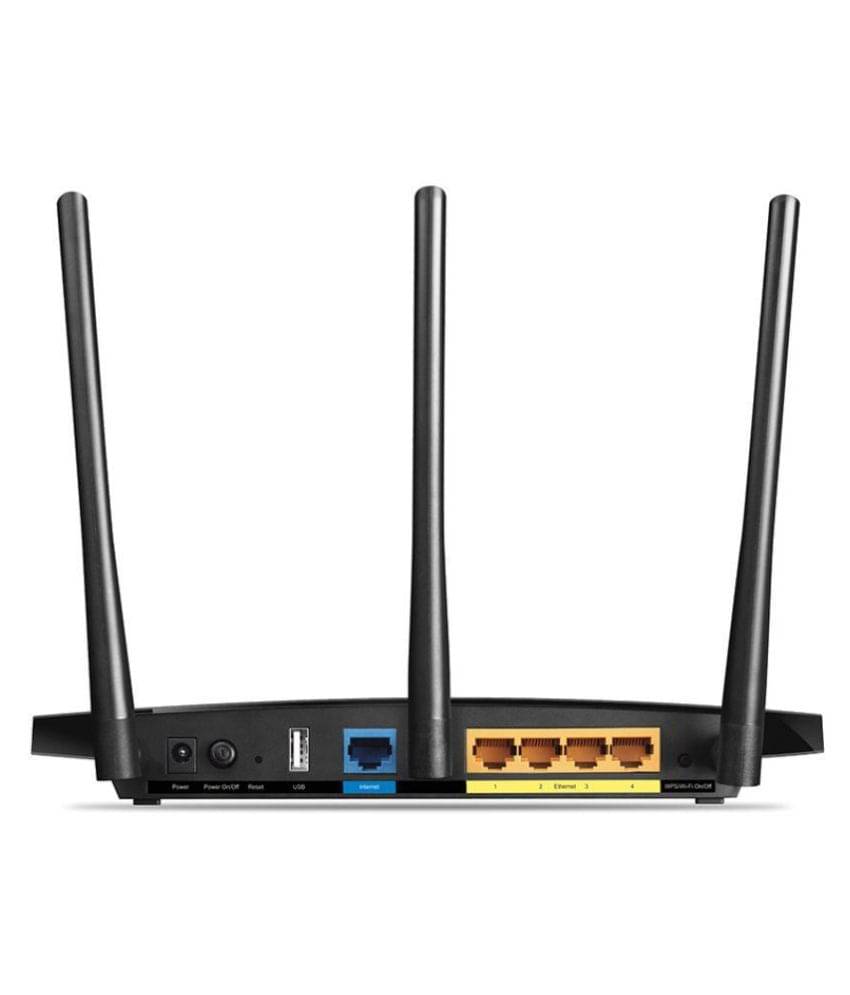

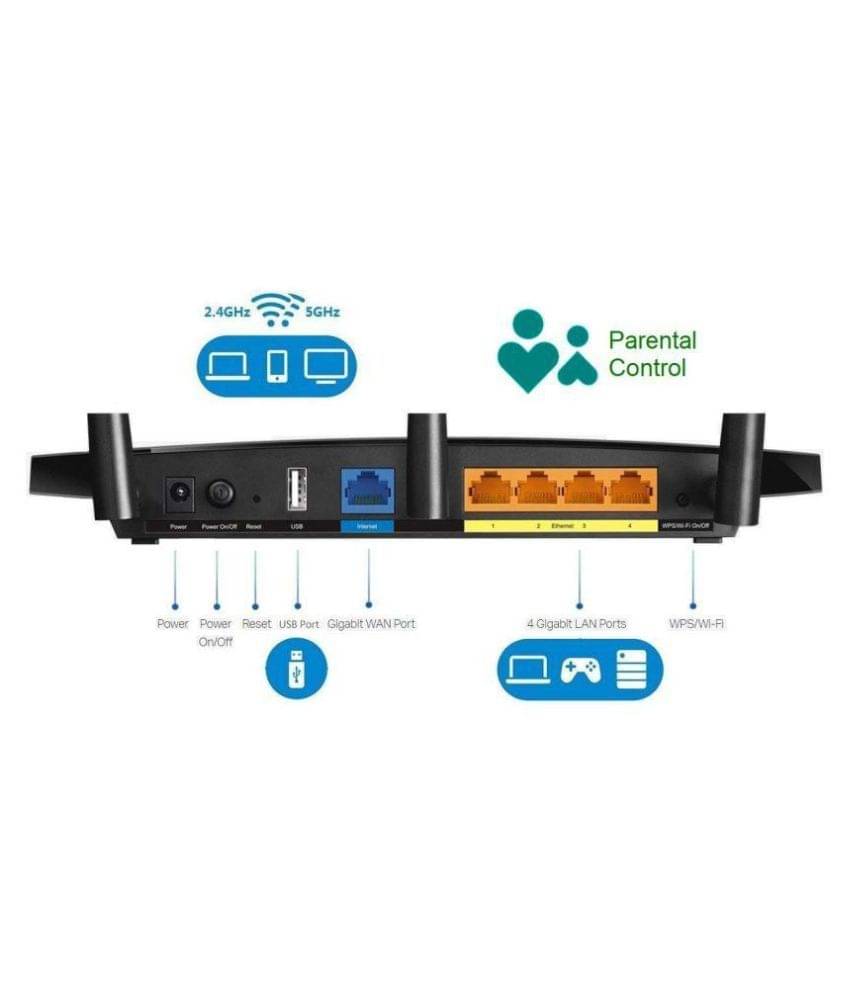

Interface 4 10/100/1000Mbps LAN Ports 1 10/100/1000Mbps WAN Port 1 USB 2.0 Ports Button Power On/Off Button WPS/Wireless On/Off Button Reset Button External Power Supply 12VDC / 1.0A Dimensions ( W x D x H ) 9.6x6.4x1.3 in. (243x160.6x32.5mm) Antenna Type 3 external antennas
WIRELESS FEATURES Wireless Standards IEEE 802.11ac/n/a 5GHz IEEE 802.11n/g/b 2.4GHz Frequency 5GHz and 2.4GHz Signal Rate 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps Reception Sensitivity 5GHz:11a 54Mbps: -76dBm 11ac HT20: -68dBm 11ac HT40: -65dBm 11ac HT80: -62dBm 11n HT20: -74dBm 11n HT40: -71dBm 2.4GHz: 11g 54M: -75dBm 11n HT20: -72dBm 11n HT40: -69dBm Transmit Power CE: <=20dBm (2.4G) <=23dBm (5G) Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES DHCP : Server, Client, DHCP Client List, Address Reservation Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ Dynamic DND : DynDns, NO-IP VPN Pass-Through : PPTP, L2TP, IPSec Access Control : Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall MAC Address Filter IP and MAC Address Binding Protocols Supports IPv4 and IPv6 USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server Guest Network 2.4GHz guest network × 1 5GHz guest network × 1 VPN Server OpenVPN, PPTP VPN Quality of Service WMM, Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access) Management Access Control Local Management Remote Management
OTHERS Certification CE, RoHS System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10 MAC OS, NetWare, UNIX or Linux Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package Contents AC1200 Wireless Dual Band Gigabit Router Archer C1200 Power supply unit Ethernet Cable Quick Installation Guide
